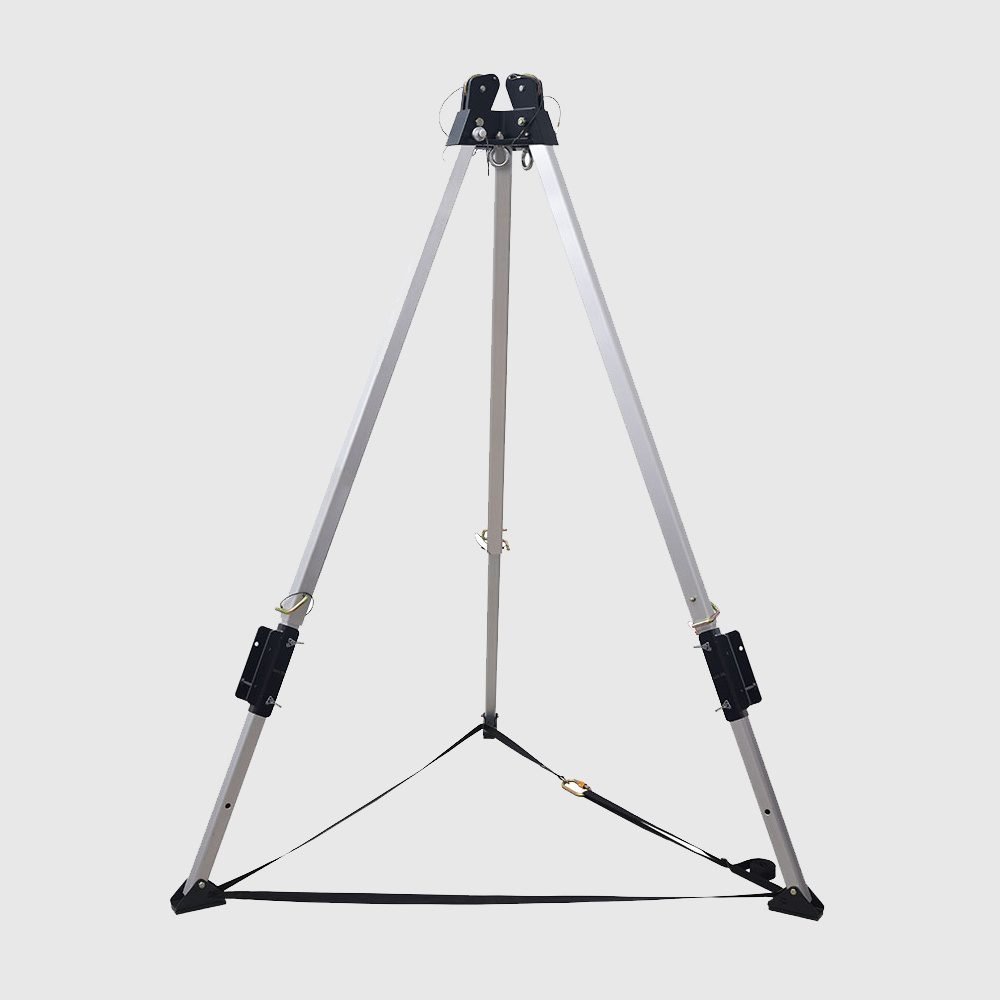

Tripod PN 800

Tripod is one such product that can be used for easy access by a worker into confined spaces such as Man-holes, Tanks, etc. It provides a means of controlled ascent and descent, as well as protection from falls, should the depth of the space require it.

Comes with double integral head mounted pulleys which is permanently incorporated in the cast aluminum head of the Tripod and provides independent passing over of cable from a winch and a retrieval block.

With two mounted pulleys at the head of the Tripod in the prolongation of the main leg for passing a cable.
Having two auxiliary eye bolts as attachment points.
Aluminium alloy cast head, legs in Aluminium.
Steel support-shoes provided with rubber sole to increase friction and impart more stability.
Strength of anchorage point greater than 15 kN.
Every Tripod is provided with inbuilt fixture for attaching our winch PN 801, PN 817, PN 801(40) (can be
supplied without this fixture on special request).
PN 800 (7ft) can also be used with Retrieval Fall Arrester Blocks PCGS 10R, PCGS 20R & PCGS 30R with
the help of their specialized mounting brackets respectively.
Every Tripod is provided with Tripod Bag (7ft)(BL)
